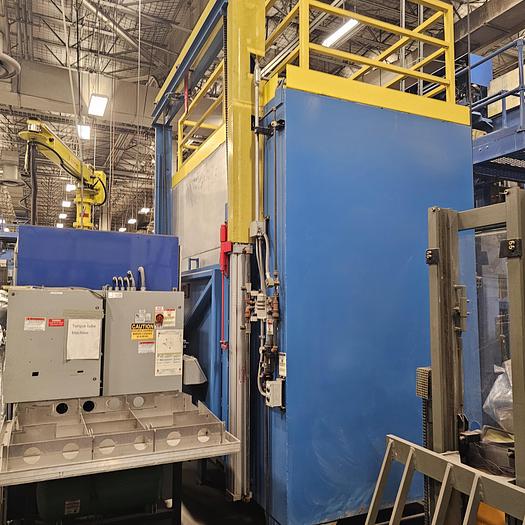

2006 Wisconsin 1300 deg Furnace 72” wide x 48” high x 48” deep

Internal useable dimensions: 72” wide x 48” high x 48” deep

Fitted with ten (10) shelves, 72” wide x 48” deep with 4” separation

·         Operating Temperature:    1300° F Maximum

400°-1200° F Normal

250° F Above Ambient Minimum

·         Temperature uniformity: +/- 25° F @ 400° F & 900° F

·          (20) point test, 2 points per shelf

Input / Hr.:                              144 KW

Voltage:                                  480/3/60

Controls:                                 Honeywell with chart recorder

Features and comments

·         Two (2) 1 hp vacuum pumps and one (1) 10 hp circulation pump

·         Gate type up acting door - hydraulic with two (2) cylinders.

·         Overall dimensions:  14’ high x 13’ wide x 6’ deep (approx..)

·         Approximate shipping weight:  9,500 lbs.

·         Shelf Loading: 40 lb. per shelf, evenly distributed

·         Two (2) 1 hp vacuum pumps and one (1) 10 hp circulation pump

·         Gate type up acting door hydraulic with two (2) cylinders.

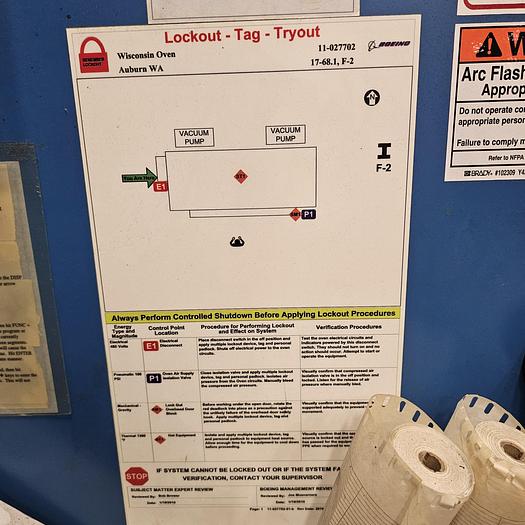

·         Safety interlocks

·         Ex-major aerospace facility. Used as “burn off” oven for SPF and diffusion bonding work.

·         Like new Has seen little use.
