Hufford A-5 Stretch press

Sold

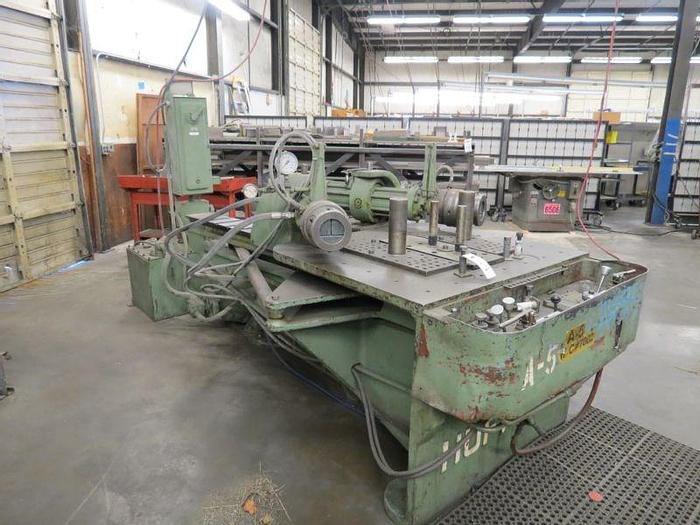

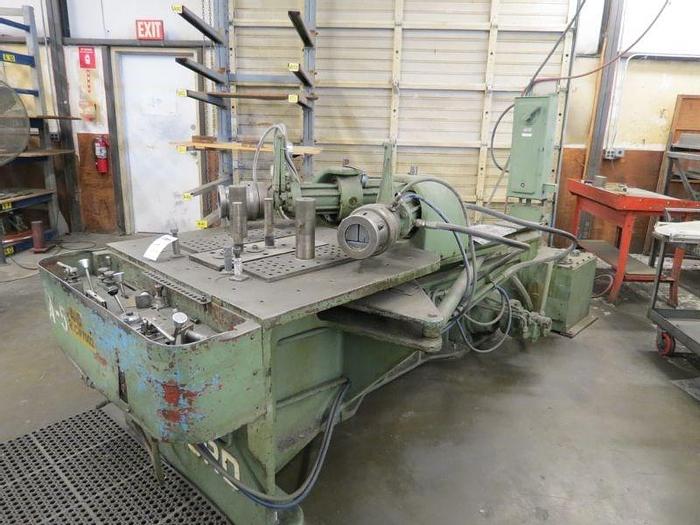

Hufford A-5 Stretch press

Location:New Fairfield, CT

Description

Catalog Specifications: Capacity 12 Tons Table Dimensions 30” x 65” Table Height 35.5” Maximum Part Length Formed 219” Minimum Part Length Formed 10” Maximum Sheet Width Formed 10” Maximum Die Height 20” Maximum Die Length @ 180 Deg. 68” Minimum Die Length @ 180 Deg. 20” Tension Cylinder Stroke 18.5” Operating Pressure Maximum 2,000 PSI Overall Floor Space Required 23’ 6” x 14’11” F-B Overall Height 4’ 7” Approximate Weight 14,000 lbs.

Specifications

ConditionUsed
